Product Lineup

Elevate Your Environment with Daikin's Diverse Heating Product

From cutting-edge condensing boilers to efficient heat pumps, Daikin brings warmth and comfort to every space

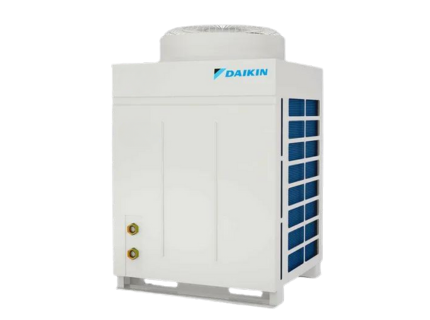

Daikin Commercial Heat Pump Water Heater, Capacity: 30,40 & 80 Kw, 380V/3N/50Hz

Increase energy efficiency and savingsOur ECH2O domestic hot water heat pump is the ideal combination of Daikin's signature heat pump technology and a high performance water storage tank to achieve 3 times less electricity than traditional water heaters.

Product Specification Details
Capacity 30, 40 & 80 Kw
Voltage 380V/3N/50Hz
Color Ivory
Compressor Scroll Type
Installation Type Floor Mounted
Operating Pressure <1.0Mpa
Model Name/Number UHA075B5, UHA100B5, UHA200B5
Usage/Application Hotels
Max Rated Pressure 5-10 Bar
Warranty 1 Year
Brand Daikin
Power supply 380V/3N/50Hz
Nominal Cycle Water Flow 5.16 To 13.76 m3/h
WPD 35-72 kPa
Nominal current 13.2 To 33.4 A
COP 4.39 W/W
Nominal Producing Water 645 To 1720 l/h
Nominal power input 6.83 To 18.22 Kw
Nominal capacity 30 To 80 Kw
